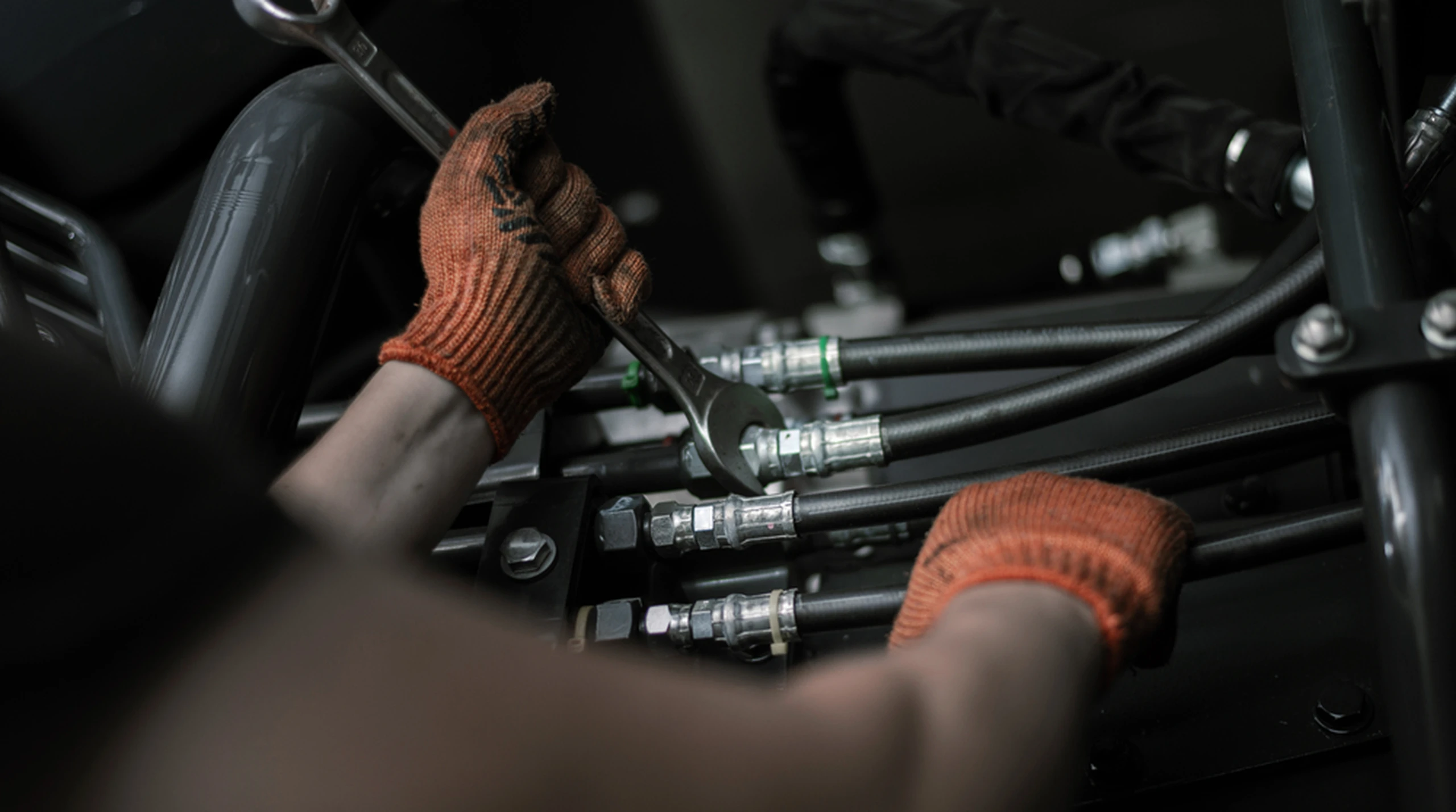

Hydraulic fittings
STAUFF
Reinforced hoses and accessories
Reinforced hoses provide a safe connection between moving parts of piping systems.
When selecting hose connections, we recommend monitoring the following criteria:
- resistance to medium, pressure and temperature
- bending radius
- external forces and pressure impulses
- external wear
- installation conditions
- range of seals and safety
Material design of fittings: stainless steel, zinc-plated
Connection types
- metric fittings with 24° cone
- metric universal fittings
- metric fittings with 60° cone
- Whitworth thread fittings
- ORFS fittings
- L/S cutting rings
- banjo bolt fittings
- compact crimp fittings
- fittings with flange connection
Basic parameters for hose selection
- permissible pressure
- nominal bore
- ambient temperature
- media compatibility
- selection of fittings
Applications
- paper machines
- agricultural machines and equipment
- construction machinery and vehicles
- lifting equipment and mechanisms
- plastic processing machines
- forestry machines and equipment
- metallurgical and rolling equipment
- machine tools
- presses – chipless machining
- machine tools – chip machining
- rescue equipment
- elevators
Storage
- indoor storage must be cool, dry, dust-free and ventilated
- outdoor covered storage is not permitted
- rubber products must not be stored below −10 °C or above +15 °C
- protect from direct heat sources
- recommended relative humidity under 65%
- protection from strong light
- store without tension, pull, pressure or deformation
- clean with soap and warm water
Hydraulic tubes
Hajdo s.r.o. stocks hydraulic tubes with external diameters from Ø 4 to Ø 42 mm.
Tube specifications
- precision, drawn (seamless) and annealed
Applications
- cold bending
- connecting with cutting ring fittings
- forming using Boardel and Walform systems
Tube design options
- phosphated: DIN 2391 1-C, material 37.4, NBK – 3.1B
- zinc-chromated: DIN 2391 1-C, material 37.4-CF, NBK – 3.1B
- stainless steel: DIN 2391 1, material 1.4571
Tube clamps
- dimensions according to DIN 3015, manufacturer RSB – rigid mounting of hydraulic tubes
- dimensions according to DIN 3015, manufacturer RSB – rigid mounting of hydraulic tubes
Material options
- polypropylene + steel
- polyamide + steel
- aluminium + steel
For tubes Ø 6 – Ø 18 mm, we also offer simple stainless-steel clamps of our own production.
HAJDO tube bending machine
Own product of Hajdo s.r.o.; allows bending of tubes from Ø 6 to Ø 22 mm.
